FEATURES

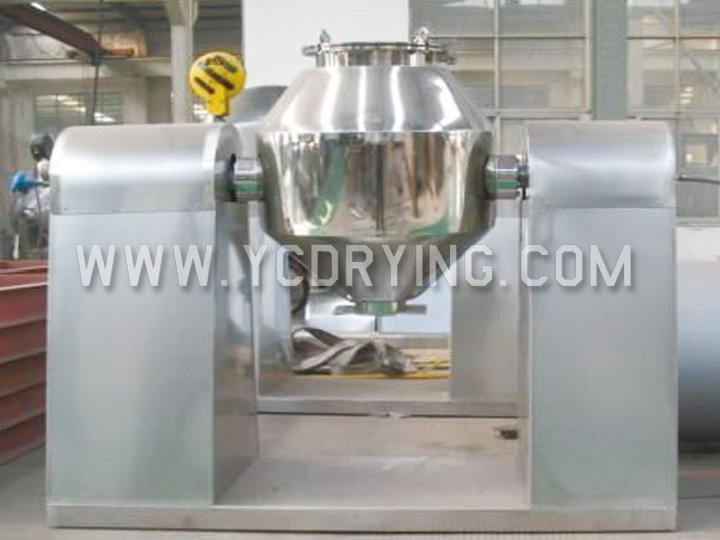

1. The powder or granule material is fed into the double cone container through the vacuum conveyor or manually. The double cone container is rotating continuously to create the compound crushing motion until the material is mixed uniformly.
2. Energy saving, easy for operation, low labor cost, and high efficiency.
APPLICATION
This mixer is suitable for mixing the powder or granule materials in pharmaceutical, chemical, foodstuff, building materials, and other industries.
Technical Parameter
| Spec \ Item |
Total Volume (L) |
Material Capcity (L) |
Working Capacity (kg) |
Rotating Speed (rpm) |
Power (kw) |
Weight (kg) |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
